Install and Configure Git on CentOS 7

SHARE
/ 273 0
Engineer installing and configuring CensOS 7 on Laptop
This article explains to beginners and intermediate Linux users how to install, configure and use Git. It’s also for those who are comfortable with Linux but are hesitant to use Git, due to their lack of familiarity with it.

Git is a distributed version control system (DVCS) created by Linus Torvalds. It’s mostly used by developers, but it can also be used to store your dot files (a dot file begins with a ‘.’ and the term is generally used to refer to .bashrc, .vimrc or other such set-up/configuration files), important scripts, etc.
It’s different from other similar DVCS systems because it does not treat data as a set of files, but rather, when you save your project in Git, it takes a snapshot of how the files look at that instant in time and stores a reference to it. The core of Git is a key-value data system. No matter what data you insert into Git, it will checksum it using an SHA 1 algorithm and create a 40-character hex key. Therefore, the name of the file is not really relevant to Git.
GitHub is a Web-based hosting service; it offers a remote Git repository where you can host your files.
Note: You don’t need GitHub to use Git. You can host your remote repository on a company server as well.

Git terminology
Let’s get familiar with some terminology:

  • Working tree: This is the directory in which you put the files that you want Git to manage. This is where you store files so that they can be staged to be pushed into the repository. Basically, this could be any directory on your local file system that has a Git repository associated with it. When you run the git init command in a normal directory, it transforms the normal directory into a working tree (working directory), because running that command creates a .git sub-directory right inside the directory in which you have run the command. We’ll soon see how this is done.
  • Repository (Git directory): The repository, also called the Git directory, is where all your game-changing Git files are stored and where all the Git goodness starts. It basically stores all the meta data, objects, etc, for your project.                                              A local repository exists on your laptop and is associated with your working tree. It’s the .git directory that gets created when you run git init as stated earlier.
  • A remote repository exists outside of your laptop, somewhere on a remote server. In our case, it will be on GitHub.
  • Git objects: There are different kinds of objects that Git uses such as:
    Tree – –This contains one or more‘trees’and blobs. A tree is a sort of a file system directory and it can point to other Git trees. Think of it as a directory having other sub-directories or ‘blobs’.
    Blobs – –These are just normal plain files such as text files, source code files, or even pictures; something like the file contents or the inode information. Basically, a blob can be thought of as something that’s not a directory.
    Commit– – This is generated the moment you run the git commit command. It has the meta data as well as a pointer to the root project directory, so that the snap shots can be recreated whenever needed.
  • Git index: This is the staging area of Git. When you run the git add command, you add files to this staging area. When you run the git commit command, these files are committed to your local Git database. You then push the files into the remote repository.

Note: The index is NOT the repository, neither is it the working tree/directory.

  • Git commit: This is a point in time snapshot of your working directory. You run the git commit command and the files are committed to the local Git database as stated earlier. This command basically checksums all the files and directories in the location where it is run and creates a commit object.
  • Branch: It is a pointer to a commit. The default branch name in Git is ‘master’. The master branch appears the first time we do a commit. If we do another commit, the master then points to this new commit.
    There is other terminology, but this is enough for starters.

Opening a GitHub account
So let’s open a GitHub account first. Head to www.github.com and sign up. It’s free.
Note: Please note down the e-mail address and the password you use to create this account. We will need it in a while when we configure Git on the laptop or desktop.

create_repo

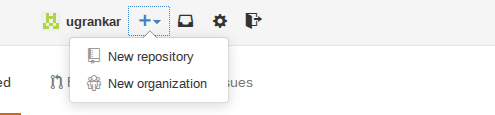

Figure 1 : Create repo

git_repo_mydotfiles

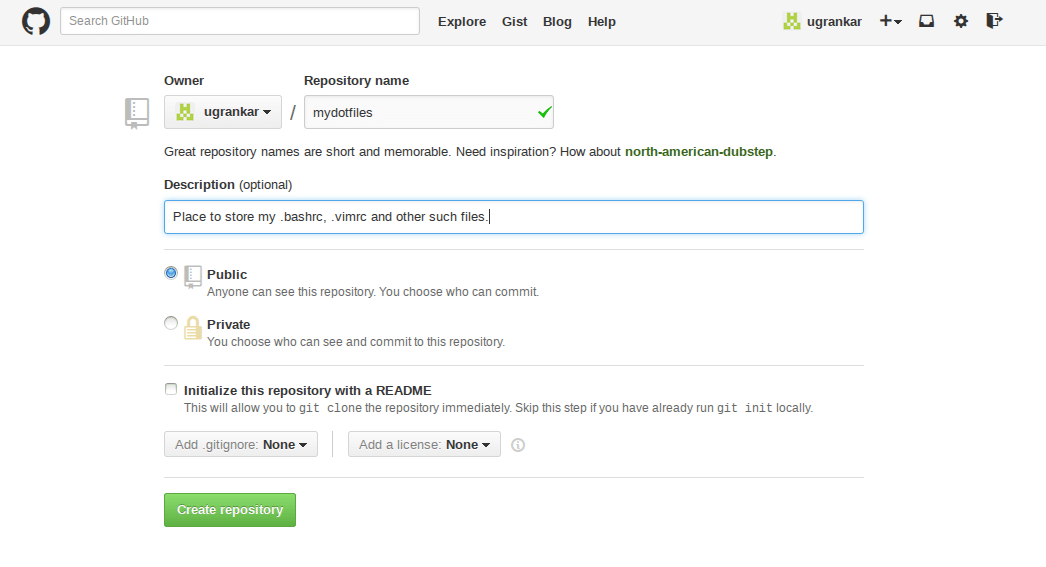

Figure 2 : Git repo

Once registration is complete, you can sign in. On the top right side of the page, you will see the name you chose and there will be a ‘+’ sign next to it. Click on it and then on the new repository option. Take a look at the screenshot in Figure 1.
On the next page, choose any name for your repository. Mine’s called mydotfiles. Provide a brief description about your repository. Please do not select the ‘Initialise this repository with a README’ option because we will be creating a README ourselves.
Click on the ‘Create repository’ button and when the next page loads, make a note of the URL shown.

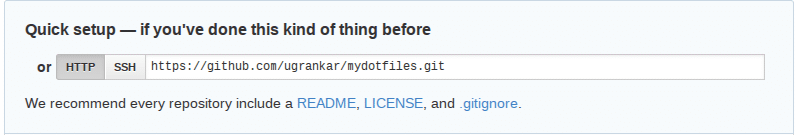

Figure 3 shows how it looks in my case. This is a screenshot of the top half of the page that loads up when you hit the ‘Create repository’ button showing the Git remote repository name.

git_remote_address

Figure 3 : git remote address

Important note: Please remember, whatever repository name you choose, you’ll either need to have a directory with exactly the same name or, you’ll need to create a new directory with the same name. Git is basically used to sync your directories and files located inside a directory on your laptop with the one having the same name on GitHub.
Installing and configuring Git for first time use
Install Git by running:

yum install git

Once you have it installed, run the git –version command to see which version we are on. This is how it looks on my laptop:

[[email protected] ~]$ git --version
git version 1.8.3.1
[[email protected] ~]$

Now, let’s configure Git for first time use. We will set up the name and e-mail address on our local laptop or desktop. This is the step we have to run the very first time we set up Git on a laptop or desktop.
Important: Please ensure that you use the same e-mail ID that you used to create the GitHub account.

[[email protected] ~]$ git config --global user.name “pmu”
[[email protected] ~]$ git config --global user.email [email protected]

Check the Git man page to see what other options can be set. Once done, you can check the options with the following command:

[[email protected] ~]$ git config --list

Initialising Git
We will now create a directory with the same name as that of the repository.

[[email protected] ~]$ mkdir mydotfiles

Let’s get into the directory and initialise Git by running the git init command. Once you do that, there should be a .git directory created in there with a few files and directories under it. In Git terminology, the mydotfiles directory has now become a working tree. Now, the mydotfiles directory and everything under it can be uploaded to Git.
Creating files for some Git action
We will create the Readme file now and add some content to it. I created a Readme.txt file in Vim, saved it and then ran the more command to show the output in the terminal.

[[email protected] mydotfiles]$ vim Readme.txt
[[email protected] mydotfiles]$ more Readme.txt

This is a Readme file, my first file that I’ll try to upload on GitHub.

[[email protected] mydotfiles]$

You can add anything you want to the file.
Now let’s run the git status command. This is a very helpful command that lets us know exactly what stage we are at.
Now let’s look at the concept that’s unique to Git. The moment we add a file, Git creates a hash checksum and refers to the file using that checksum. In other words, we call the file Readme.txt but Git refers to it by its checksum. If we were to look for files in a directory, we’d run the ls command. With Git, we run the Git ls-files –stage command.

[[email protected] mydotfiles]$ git ls-files --stage
100644 b70f72952f495b2aae83f2ff1a50b5ee8d001edb 0 Readme.txt
[[email protected] mydotfiles]$

Look at the long string – b70f72952f495b2aae83f2ff1a50b5ee8d001edb. That’s how Git refers to what we call the Readme.txt file. So what does this file have? Well, we could check it as follows:

[[email protected] mydotfiles]$ git show b70f

This is a Readme file, my first file that I’ll try to upload on GitHub.

[[email protected] mydotfiles]$

That’s the Git equivalent of more Readme.txt or cat Readme.txt. That’s exactly the same content we have in our Readme.txt file. Note that we can just supply the first four characters of the hash. So this means that Git really doesn’t track or manage a file using the filename we give to it. It just ‘cares about’ the hashed checksum. In other words, if two or more files were to have the exact same content, then the hash checksum generated for those files will be exactly the same.
The following example will make it even clearer.
Let’s copy the Readme.txt file with some other name without changing any content inside the actual file.

[[email protected] mydotfiles]$ cp Readme.txt Oncemore.txt

[[email protected] mydotfiles]$ ls -l
total 8
-rw-rw-r--. 1 pmu pmu 72 Sep 22 21:03 Oncemore.txt
-rw-rw-r--. 1 pmu pmu 72 Sep 22 20:53 Readme.txt

[[email protected] mydotfiles]$

Let’s run the Git status command and see how it responds.

[[email protected] mydotfiles]$ git status
# On branch master
# Initial commit
# Changes to be committed:
# (use “git rm --cached <file>...” to unstage)
# new file: Readme.txt
# Untracked files:
# (use “git add <file>...” to include in what will be committed)
# Oncemore.txt
[[email protected] mydotfiles]$

It shows the newly created file. Note that it states Readme.txt as a new file, because we just added it with the git add Readme.txt command. We also have a copy of that file with the name Oncemore.txt. Since we have still not added it, it shows up as an untracked file.

Will Git show some different output with the Git ls-files –stage command this time?

[[email protected] mydotfiles]$ git ls-files --stage
100644 b70f72952f495b2aae83f2ff1a50b5ee8d001edb 0 Readme.txt
[[email protected] mydotfiles]$

No, it does not. So, let’s go ahead and add the Oncemore.txt file. We will use a ‘.’ this time so that it adds all the files (Readme.txt and Oncemore.txt).

[[email protected] mydotfiles]$ git add .

[[email protected] mydotfiles]$ git status
# On branch master
# Initial commit
# Changes to be committed:
# (use “git rm --cached <file>...” to unstage)
# new file: Oncemore.txt
# new file: Readme.txt
[[email protected] mydotfiles]$

Note how the Oncemore.txt file now shows up as a new file instead of as ‘untracked’. So, how does Git see these two files? Let’s find out again with the Git ls-files –stage command.

[[email protected] mydotfiles]$ git ls-files --stage
100644 b70f72952f495b2aae83f2ff1a50b5ee8d001edb 0 Oncemore.txt
100644 b70f72952f495b2aae83f2ff1a50b5ee8d001edb 0 Readme.txt
[[email protected] mydotfiles]$

Well, it’s basically two files with different names, but with the same checksum.

The following output confirms it:

[[email protected] mydotfiles]$ git ls-files --stage | awk {‘print $2’} | sort | uniq
b70f72952f495b2aae83f2ff1a50b5ee8d001edb
[[email protected] mydotfiles]$

Indeed, the checksum value is the same; it’s just that there are two file names associated with it. The git show command lets us peek into the file using the checksum value. If you and I were to see the file content, we would use cat/more/less or something like that. But Git uses the git show command and we supply the checksum to it.

[[email protected] mydotfiles]$ git show b70f
This is a Readme file, my first file that I’ll try to upload on GitHub.
[[email protected] mydotfiles]$

If you were expecting to see the content mentioned twice, you’re still thinking the ‘filename way’ which is not the case here. For Git, it’s just b70f72952f495b2aae83f2ff1a50b5ee8d001edb. This is what Git calls a blob.
Let’s leave Oncemore.txt alone for a while now and just focus on Readme.txt.
We’ll now run the git commit command, which will add the file to the Git local repository.

@t430 mydotfiles]$ git commit -m “Adding my first file - Readme.txt” Readme.txt
[master (root-commit) 26ab994] Adding my first file - Readme.txt
1 file changed, 1 insertion(+)
create mode 100644 Readme.txt
[[email protected] mydotfiles]$

The output shows that the Readme.txt file is now committed to the repository. The part added in quotes after -m is the message or comment. The output above tells us that there is one insertion and the last three digits that appear after the ‘create mode’ word – 644 indicate the ‘umask’ of the file. So what’s the number 26ab994? Let’s find out using the git show command once again:

[[email protected] mydotfiles]$ git show 26ab994
commit 26ab994663499b21d8e2de7fc0f53925954fae7c
Author: pmu <[email protected]>
Date: Mon Sep 22 21:08:18 2014 +0530
Adding my first file - Readme.txt
diff --git a/Readme.txt b/Readme.txt
new file mode 100644
index 0000000..b70f729
--- /dev/null
+++ b/Readme.txt
@@ -0,0 +1 @@
+This is a Readme file, my first file that I’ll try to upload on GitHub.
[[email protected] mydotfiles]$

That is the commit object hash checksum. This is the Git object which has the author’s name, the date and time, the comment, the hashed checksum name of the file that was committed, and some more information. Note that in the line ‘index 0000000..b70f729’, the last seven digits are nothing but the first seven digits of the checksum that Git created for our Readme.txt file.
Let’s run the git status command again.

[[email protected] mydotfiles]$ git status
# On branch master
# Changes to be committed:
# (use “git reset HEAD <file>...” to unstage)
# new file: Oncemore.txt
[[email protected] mydotfiles]$

This makes sense, because we committed only the Readme.txt file, but didn’t commit the Oncemore.txt file. Git’s telling us the same. It’s telling us that we still have not committed the Oncemore.txt file.
Pushing to GitHub
Now, it’s time to push our Readme.txt file onto GitHub, which is our remote repository. Well, first let’s check if we have any remote repository already residing in there.

[[email protected] mydotfiles]$ git remote -v
[[email protected] mydotfiles]$

No, we don’t have it. So let’s go ahead and add the remote repository. Do you remember that in the beginning of the tutorial, we had noted down the repository URL? That’s the one we will use. The command for that is git remote add origin the_name_of_your_github_repo.git.

In my case it will look like what follows:

[[email protected] mydotfiles]$ git remote add origin https://github.com/ugrankar/mydotfiles.git

Let’s see what the git remote -v command says this time.

[[email protected] mydotfiles]$ git remote -v
origin https://github.com/ugrankar/mydotfiles.git (fetch)
origin https://github.com/ugrankar/mydotfiles.git (push)
[[email protected] mydotfiles]$

It shows the repository added.
Here’s what the command means:

  • git remote add: This means ‘add the remote directory to Git’.
  • origin: This is the default name for the remote location, so that you can use it instead of typing the lengthy https://github.com/ugrankar/mydotfiles.git line. I could have used the word ‘pmu’ instead of ‘origin’ or even ‘abracadabra’ instead of ‘origin’. It doesn’t matter. But ‘origin’ seems to be the name that’s used most often and, as mentioned before, it’s the default name. So we will use that.

Before we run the next command, open up your GitHub repository in your browser.

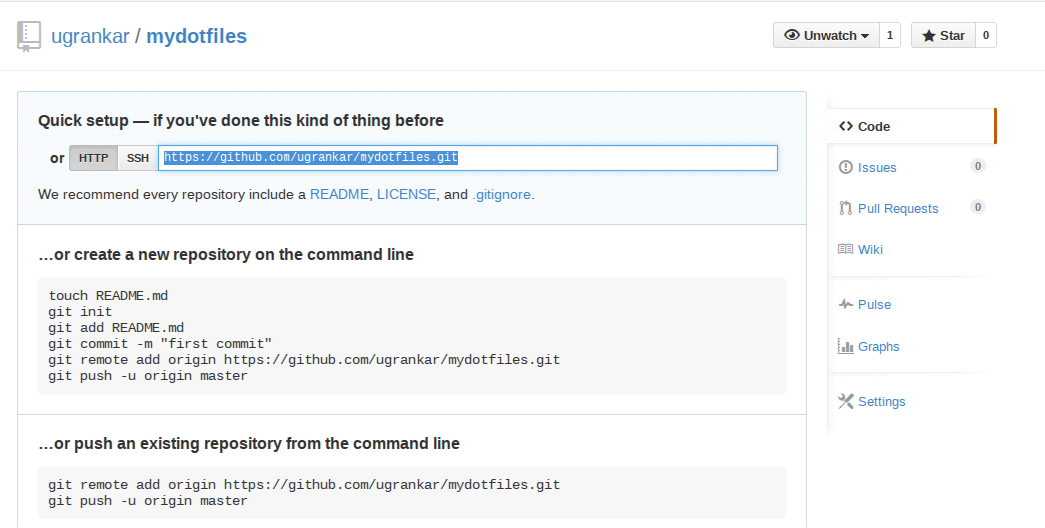

Figure 4 shows how mine looks.

before_push

Figure 4 : Before push

after_push

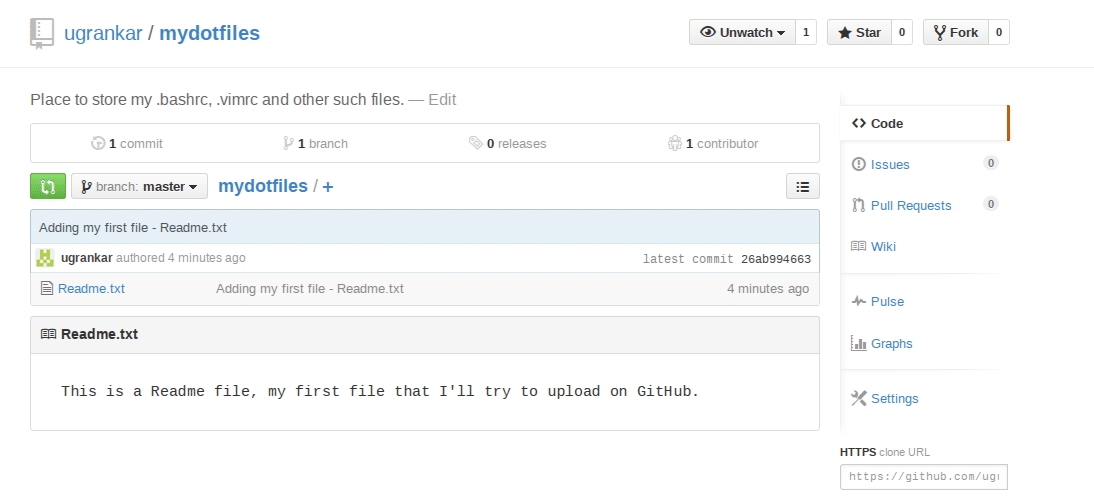

Figure 5 : After push

Now, let’s push the file to GitHub using the git push origin master command.

[[email protected] mydotfiles]$ git push origin master

Note: You’ll have to use the same username and password that you use to create and access your GitHub account. There’s a method to add ssh keys, but let’s go this way for starters.

Refresh the GitHub page and you’ll see your Readme.txt file there. Note the line that says ‘latest commit 26ab994663’ which is the commit object.
Let’s get back to the output captured above.
Note the line where it mentions ‘counting objects’ and ‘Total 3 (delta 0)’. It’s ‘3 Object’ in there. So what are these objects?
Git has a command git rev-list –objects –all that will list out all the objects.

[[email protected] mydotfiles]$ git rev-list --objects --all

The got rev-list –objects –all command shows all the objects.
So let’s check them one by one using the ‘git show’ command.

[[email protected] mydotfiles]$ git show 26ab
commit 26ab994663499b21d8e2de7fc0f53925954fae7c
Author: pmu <[email protected]>
Date: Mon Sep 22 21:08:18 2014 +0530
Adding my first file - Readme.txt
diff --git a/Readme.txt b/Readme.txt
new file mode 100644
index 0000000..b70f729
--- /dev/null
+++ b/Readme.txt
@@ -0,0 +1 @@
+This is a Readme file, my first file that I’ll try to upload on GitHub.
[[email protected] mydotfiles]$

So that’s the commit object.
Let’s check more:

[[email protected] mydotfiles]$ git show 82b77
tree 82b77

Readme.txt

That’s the tree, or the working tree, as Git would refer to it, and mydotfiles, as how I would call it.
And now for the next entry:

[[email protected] mydotfiles]$ git show b70f
This is a Readme file, my first file that I’ll try to upload on GitHub.
[[email protected] mydotfiles]$

That’s our Readme.txt file.
Note: Git says it’s just got the Readme.txt file in it. But we also had the Oncemore.txt file in there, didn’t we? Yes, we did, but we had just ‘added’ the file, not committed it.

So let’s commit the Oncemore.txt file and see what we get:

[[email protected] mydotfiles]$ git commit -m “Now adding the Oncemore.txt file” Oncemore.txt
[master 2aa51b8] Now adding the Oncemore.txt file
1 file changed, 1 insertion(+)
create mode 100644 Oncemore.txt
[[email protected] mydotfiles]$

Run the git status command like the last time.

[[email protected] mydotfiles]$ git status
# On branch master
nothing to commit, working directory clean
[[email protected] mydotfiles]$

The output states that we have nothing to commit. Let’s check the objects we have:

[[email protected] mydotfiles]$ git rev-list --objects --all

There are now five objects. The first and the third in the list above seem to be new, so let’s check them out.

[[email protected] mydotfiles]$ git show 2aa5
commit 2aa51b8cae195fb0d786115898179b20b51a094b
Author: pmu <[email protected]>
Date: Mon Sep 22 21:20:26 2014 +0530

Now adding the Oncemore.txt file

diff --git a/Oncemore.txt b/Oncemore.txt
new file mode 100644
index 0000000..b70f729
--- /dev/null
+++ b/Oncemore.txt
@@ -0,0 +1 @@
+This is a Readme file, my first file that I’ll try to upload on GitHub.
[[email protected] mydotfiles]$

[[email protected] mydotfiles]$ git show 6116
tree 6116

Oncemore.txt
Readme.txt
[[email protected] mydotfiles]$

Note that 2aa5 is the commit object created after we ran the git commit command for Oncemore.txt and 6116 is the working tree object, which now shows two files – Readme.txt and Oncemore.txt.

Note that the checksum starting with b70f is now associated with the Oncemore.txt file.
We can do a git push using the below command.

[[email protected] mydotfiles]$ git push origin master

Take a look at your GitHub page and it should show you that it’s uploaded. Figure 6 shows how my page looks now.
Note how the comment for Oncemore.txt is the same as it was for the Readme.txt. We had committed Oncemore.txt with the comment, ‘Now adding the Oncemore.txt file’; so why did Git retain the same comment that we used while committing Oncemore.txt? Once again, for Git, the file name does not matter. It sees that the commit is for the same Blob and hence retains the command.
This time, it uploads two objects—the commit object (for Oncemore.txt) and the working tree object. Why the working tree object again? That’s because the working tree object gets a new checksum after we added the Oncemore.txt file to it. Run the git show command with the four-character hex and you’ll see what I mean.
Now, let’s try to change the content of Oncemore.txt file and see what happens.
I’ve added a line so that the Oncemore.txt file looks like what follows:

[[email protected] mydotfiles]$ more Oncemore.txt
This is a Readme file, my first file that I’ll try to upload on GitHub.
This is a new line added to the Oncemore.txt file. It’s not there in the Readme.txt file.
[[email protected] mydotfiles]$

Let’s run git status and see what it tells us:

[[email protected] mydotfiles]$ git status
# On branch master
# Changes not staged for commit:
# (use “git add <file>...” to update what will be committed)
# (use “git checkout -- <file>...” to discard changes in working directory)
# modified: Oncemore.txt
no changes added to commit (use “git add” and/or “git commit -a”)
[[email protected] mydotfiles]$

The file shows up as modified. So, we need to add the file again like how Git instructs us to. Let’s do that and see what happens.

[[email protected] mydotfiles]$ git add Oncemore.txt
[[email protected] mydotfiles]$ git status
# On branch master
# Changes to be committed:
# (use “git reset HEAD <file>...” to unstage)
# modified: Oncemore.txt
[[email protected] mydotfiles]$

Has the checksum now changed?

[[email protected] mydotfiles]$ git ls-files --stage
100644 f10c9773eef39357a15a18183d1a4d42b349267d 0 Oncemore.txt
100644 b70f72952f495b2aae83f2ff1a50b5ee8d001edb 0 Readme.txt
[[email protected] mydotfiles]$

Indeed, it has. Now, Git sees this as a completely different file…or rather, a different checksum.
Now, let’s run the git commit command with exactly the same comment we had used earlier while committing the Oncemore.txt file.

git commit -m “Now adding the Oncemore.txt file” Oncemore.txt

[[email protected] mydotfiles]$ git commit -m “Now adding the Oncemore.txt file” Oncemore.txt
[master f911d56] Now adding the Oncemore.txt file
1 file changed, 1 insertion(+)
[[email protected] mydotfiles]$

Now, we have a new Commit Objectf911d56. It’s time for a Git push now.

Refresh your GitHub page and you’ll see that the Oncemore.txt file has exactly the same comment that you added just two minutes before.
Well, understand that it didn’t remember the comment that you ran the first time while committing Oncemore.txt. This is the comment that you added just now. You could have very well added a different command.
Cloning from GitHub
Now that you’ve got your files up there on GitHub, what can you do with them? Cloning is one of them. Basically, when you clone a repo, you get a local copy of a Git repository so that you can fiddle around with it. Let’s create a directory in which we will clone the repository.
Note: There is no need to run git init this time, because we are not creating a repo that we will be pushing up. We’re just cloning an existing repository.

[email protected] mydotfiles]$ mkdir clonedir
[[email protected] mydotfiles]$ cd clonedir
[[email protected] clonedir]$ git clone https://github.com/ugrankar/mydotfiles.git

And what does it have?

[[email protected] clonedir]$ ls -la
total 0
drwxrwxr-x. 3 pmu pmu 23 Sep 22 22:44 .
drwxrwxr-x. 4 pmu pmu 68 Sep 22 22:44 ..
drwxrwxr-x. 3 pmu pmu 53 Sep 22 22:44 mydotfiles
[[email protected] clonedir]$ cd mydotfiles/
[[email protected] mydotfiles]$ ls
Oncemore.txt Readme.txt
[[email protected] mydotfiles]$ ls -a
. .. .git Oncemore.txt Readme.txt
[[email protected] mydotfiles]$

There—you’ve got the same files that you had uploaded!
