With expandable designs, real-time signal processing, and remote access, it’s an all-in-one solution for signal processing, circuit testing, and prototyping.

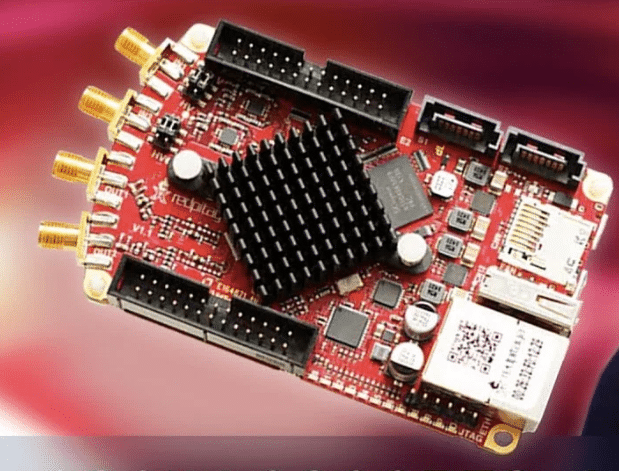

The Red Pitaya board is reshaping the electronics testing landscape with its compact, Linux-based design. It offers a modern alternative to traditional bench-top tools by integrating FPGA, an analog front end, and a dual-core ARM Cortex-A9 processor. Whether you’re a hobbyist, professional engineer, or educator, It provides a reprogrammable platform for signal measurement, analysis, and development, consolidating multiple functionalities into one device.
Its adaptability makes it suitable for all skill levels. Its customisable features cater to diverse needs, from signal processing and circuit testing to prototyping and automation. Its attributes include:
- FPGA Integration: Enables real-time signal processing with precision and speed.
- Analog Front End: Offers accurate data acquisition (125 MS/s sampling rate, 14-bit resolution).
- Dual-Core ARM Cortex-A9 Processor: Ensures robust processing for bandwidths up to 50 MHz.
- Expandable Design: Arduino compatibility and pin headers for custom projects.
- Ethernet Connectivity: Facilitates remote access and system integration.
It serves as a modern replacement for traditional tools like oscilloscopes, spectrum analyzers, and logic analyzers. It excels in various applications, including signal processing and power analysis for research and development, testing and troubleshooting digital and analog circuits, and enabling remote management through SSH and SCPI commands for efficient control and monitoring. As an educational resource, it simplifies learning in electronics, signal processing, and FPGA programming, benefiting both beginners and advanced users.
It’s open ecosystem supports Python, C, MATLAB, and LabVIEW, with FPGA customization via Xilinx Vivado IDE. A web-based interface enables easy operation from any browser. An app marketplace extends its capabilities with pre-built and user-shared tools. Its reprogrammable nature, compact design, and cost efficiency make it a versatile choice. However, Ethernet dependency and a learning curve for FPGA programming may pose challenges. With multi-board synchronization and an evolving app marketplace, Red Pitaya continues to adapt to emerging needs, cementing its role as a forward-looking platform for electronics testing and innovation.
