MQTT: A Protocol that Helps Devices Communicate with Each Other

0
1300
Advertisement

MQTT is a communications protocol that connects the devices or ‘things’ that are elements of the Internet of Things (IoT) so that they can talk to one another and also stream data. In IoT technology, communication plays a major role and MQTT is ideal for low-powered devices with limited resources.

The term ‘Internet of Things’ was first used by Kevin Ashton in 1999 for interconnecting physical devices over the Internet. The basic idea is very simple – that physical devices can exchange data with each other or be controlled by others.

  • At Cisco, IoT is called the Internet of Everything, and the firm believes it will be the “…latest wave of the Internet — connecting physical objects… to provide better safety, comfort and efficiency.”
  • Within IBM, it is thought of as “…a completely new WWW, one comprised of the messages that digitally-empowered devices would send to one another. It is the same Internet, but not the same Web.”
  • GE’s Industrial Internet directly envisions new applications. At GE, the Industrial Internet represents “…the convergence of machine and intelligent data… to create brilliant machines.”
  • At RTI (Real-Time Innovations), the IoT is considered to be “Your system, working as one.” It is believed to be as profound as the cell network, GPS, or the Internet itself. The IoT and the intelligent systems it enables are expected to fundamentally change the world.
  • The IoT is made up of the Internet and of millions of things. It allows things, or non-computer objects, to hear, see, think, compute and act by allowing them to communicate and coordinate with each other in decision making. In other words, it allows things to act smartly and make consensual decisions that benefit many applications. It transforms objects or sensors from being passive observers to actively computing, communicating, collaborating and making critical decisions. IoT plays a significant role in different types of applications including healthcare, transportation, automation, agriculture, and in emergency responses to disasters. In addition, it is expected to improve the quality of life, of business applications, and of smart homes. An example of the currently available IoT ecosystem is smart homes, which have sensors for remotely controlling the temperature—the heating or air conditioning. A graphical representation of IoT architecture is given in Figure 1.

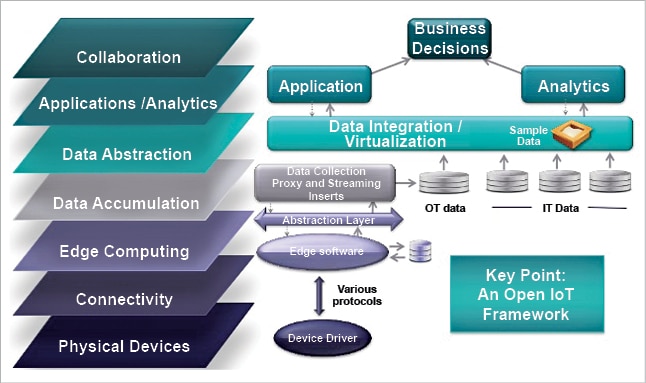

Figure 1: IoT architecture

The basics of MQTT

Message Queuing Telemetry Transport (MQTT) is a 2013 standard from the Organisation for the Advancement of Structured Information Standards (OASIS). It is an open, low-impact data movement protocol used by a wide variety of IoT objects and operational platforms to communicate over the network. Introduced by IBM in 1999, it provides the connectivity between applications and users at one end, and the network and communications protocols at the other end. Applications making use of MQTT can be developed just by implementing its control packets—connect, publish, subscribe and disconnect.

Advertisement

The MQTT protocol was specifically built to support machine-to-machine (M2M) and IoT applications. Its lightweight design has facilitated a revolution in intercommunication performance. MQTT has thus enabled rapid messaging between the billions of things that are now connected through the Internet.

The MQTT framework

MQTT has a publish/subscribe architecture, consisting of three main components — the publishers, the subscribers and the brokers. The publishers are the lightweight sensors that connect to the broker to send their data and go back to sleep whenever possible. The subscribers are applications that are interested in a certain topic, or sensory data, so they connect to brokers to be informed whenever new data are received. And the brokers classify sensory data in topics and send them to subscribers interested in those topics only.

The communication is asynchronous, and can also act as a pipe to binary data. Every message published to an address is called a topic. Clients may subscribe to multiple topics. Every client subscribing to a topic receives all the messages published to the topic. In an MQTT skeleton, sensors act as the clients and the server acts as a broker over a TCP layer. The client can either publish or subscribe to a message. An extension of MQTT, secure MQTT (SMQTT), was proposed in order to provide lightweight attribute based encryption.

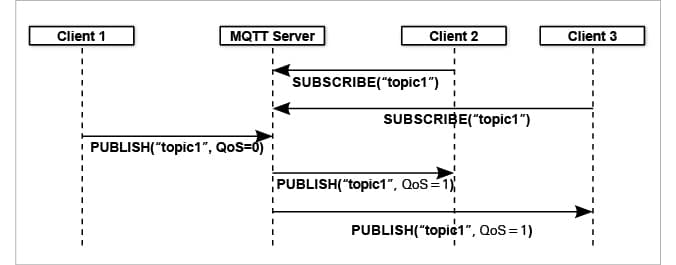

In Figure 2, client1 wishes to share a particular topic (message) by publishing it through the MQTT server once it is available. Clients 2 and 3 subscribe to (acknowledge) the message. ‘QoS=0’ means the client doesn’t expect any response to the message sent, whereas ‘QoS=1’ means the message is stored and a response (PUBACK Response) is expected.

Applications and use cases

Facebook currently uses the MQTT protocol for its messaging app, not only because the protocol conserves battery power during mobile phone-to-phone messaging, but also because, in spite of inconsistent Internet connections across the globe, the protocol enables messages to be delivered efficiently within milliseconds. Most cloud service providers including AWS, Google Cloud, IBM Bluemix and Microsoft Azure also follow the same protocol. MQTT is well suited to applications using M2M and IoT devices, for real-time analytics, preventive maintenance and monitoring in environments such as smart homes, healthcare, logistics, industry and manufacturing.

Figure 2: Sequence diagram

Competing protocols

Other transfer protocols under consideration for IoT devices with constrained resources include the Constrained Application Protocol (CoAP), which uses a request/response communication pattern, and the Advanced Message Queuing Protocol (AMQP), which, like MQTT, uses a publish/subscribe communication pattern.

MQTT is a lightweight communications protocol and can be used for many purposes. Imagine your alarm clock knows that your train to work is 15 minutes late and adjusts itself accordingly, or that your coffee maker switches on automatically 15 minutes later to make you a hot cup of coffee before you leave for work. Sounds like the future? Actually, all this is possible even today. Ericsson predicts that in 2020, 50 billion devices will be connected over the Internet. The communication between these objects will be enabled by IPv6 and lightweight communication protocols like MQTT. Our future is in safe hands!
