DevOps series: Ansible deployment of RabbitMQ

0
16107
RabbitMQ



RabbitMQ, which is free and open source, is the world’s most widely deployed message broker. It is used by several big companies like Ford, Instagram, Cisco, etc. Being easy to deploy, it can be used in situ or on the cloud.

In this fourth article in the DevOps series, we will learn to install RabbitMQ using Ansible. RabbitMQ is a free and open source message broker system that supports a number of protocols such as the Advanced Message Queuing Protocol (AMQP), Streaming Text Oriented Messaging Protocol (STOMP) and Message Queue Telemetry Transport (MQTT). The software has support for a large number of client libraries for different programming languages. RabbitMQ is written using the Erlang programming language and is released under the Mozilla Public License.

Setting it up

A CentOS 6.8 virtual machine (VM) running on KVM is used for the installation. Do make sure that the VM has access to the Internet. The Ansible version used on the host (Parabola GNU/Linux-libre x86_64) is 2.2.1.0. The ansible/folder contains the following files:

ansible/inventory/kvm/inventory
ansible/playbooks/configuration/rabbitmq.yml
ansible/playbooks/admin/uninstall-rabbitmq.yml

The IP address of the guest CentOS 6.8 VM is added to the inventory file as shown below:

rabbitmq ansible_host=192.168.122.161 ansible_connection=ssh ansible_user=root ansible_password=password

Also, add an entry for the rabbitmq host in the /etc/hosts file as indicated below:

192.168.122.161 rabbitmq

Installation

RabbitMQ requires the Erlang environment, and uses the Open Telecom Platform (OTP) framework. There are multiple sources for installing Erlang — the EPEL repository, Erlang Solutions, and the zero-dependency Erlang provided by RabbitMQ. In this article, we will use the EPEL repository for installing Erlang.

---
- name: Install RabbitMQ server
hosts: rabbitmq
gather_facts: true
tags: [server]

tasks:
- name: Import EPEL GPG key
rpm_key:
key: http://dl.fedoraproject.org/pub/epel/RPM-GPG-KEY-EPEL-6
state: present

- name: Add YUM repo
yum_repository:
name: epel
description: EPEL YUM repo
baseurl: https://dl.fedoraproject.org/pub/epel/$releasever/$basearch/
gpgcheck: yes

- name: Update the software package repository
yum:
name: ‘*’
update_cache: yes

- name: Install RabbitMQ server
package:
name: “{{ item }}”
state: latest
with_items:
- rabbitmq-server

- name: Start the RabbitMQ server
service:
name: rabbitmq-server
state: started

- wait_for:
port: 5672

After importing the EPEL GPG key and adding the EPEL repository to the system, the yum update command is executed. The RabbitMQ server and its dependencies are then installed. We wait for the RabbitMQ server to start and listen on port 5672. The above playbook can be invoked as follows:

$ ansible-playbook -i inventory/kvm/inventory playbooks/configuration/rabbitmq.yml --tags “server”
Dashboard

The RabbitMQ management user interface (UI) is available through plugins.

- name: Start RabbitMQ Management UI
hosts: rabbitmq
gather_facts: true
tags: [ui]

tasks:
- name: Start management UI
command: /usr/lib/rabbitmq/bin/rabbitmq-plugins enable rabbitmq_management

- name: Restart RabbitMQ server
service:
name: rabbitmq-server
state: restarted

- wait_for:
port: 15672

- name: Allow port 15672
shell: iptables -I INPUT 5 -p tcp --dport 15672 -m state --state NEW,ESTABLISHED -j ACCEPT

After enabling the management plugin, the server needs to be restarted. Since we are running it inside the VM, we need to allow the management user interface (UI) port 15672 through the firewall. The playbook invocation to set up the management UI is given below:

$ ansible-playbook -i inventory/kvm/inventory playbooks/configuration/rabbitmq.yml --tags “ui”

The default user name and password for the dashboard are ‘guest:guest’. From your host system, you can start a browser and open http://192.168.122.161:15672 to view the login page as shown in Figure 1. The default ‘Overview’ page is shown in Figure 2.

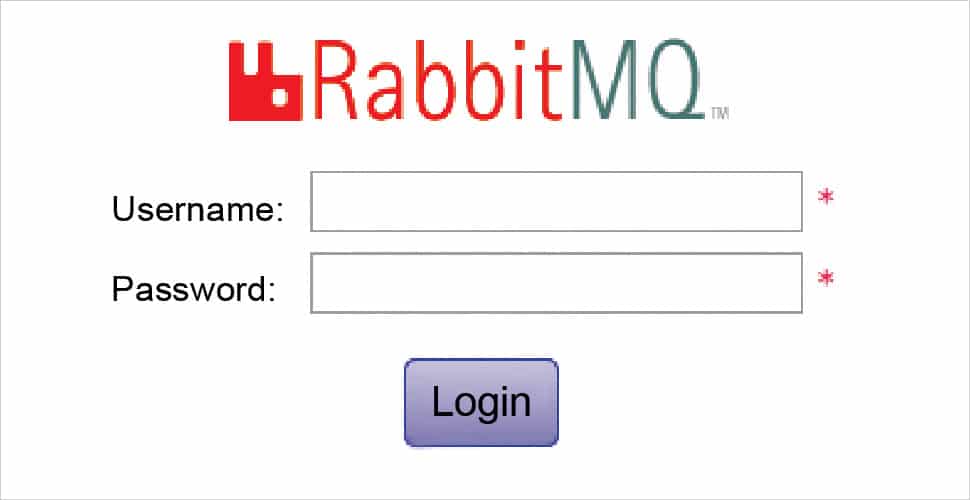

Figure 1: RabbitMQ login

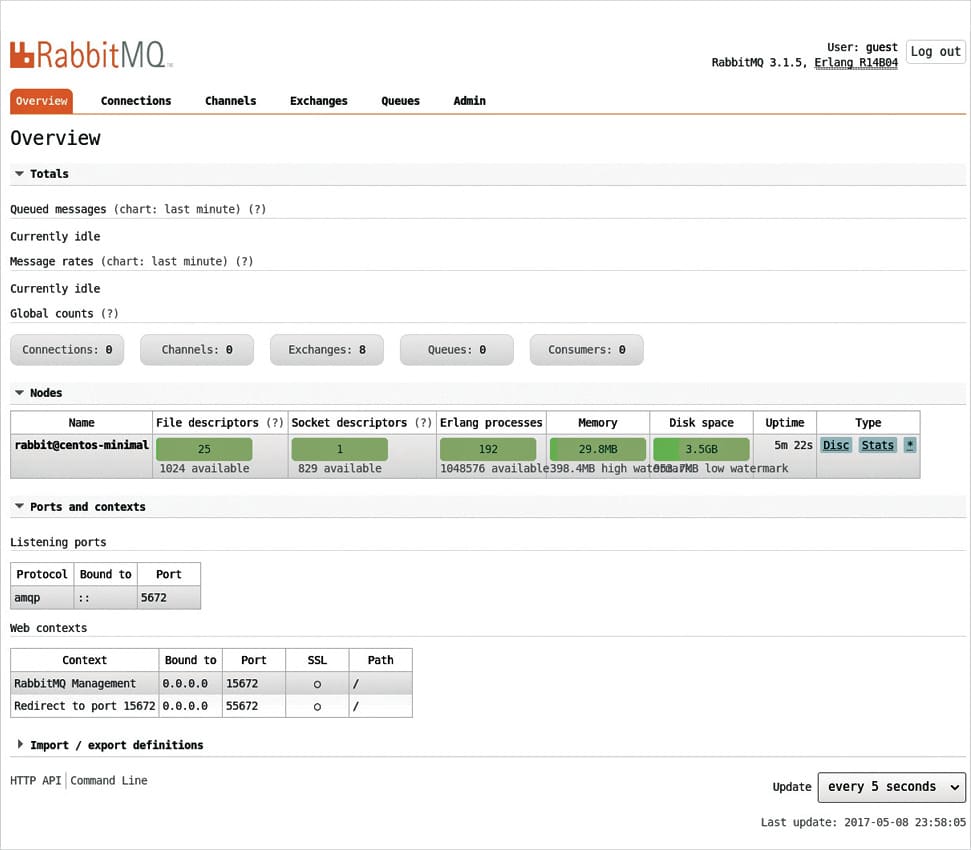

Figure 2: RabbitMQ overview

Ruby

We will use a Ruby client example to demonstrate that our installation of RabbitMQ is working fine. The Ruby Version Manager (RVM) will be used to install Ruby as shown below:

- name: Ruby client
hosts: rabbitmq
gather_facts: true
tags: [ruby]

tasks:
- name: Import key
command: gpg2 --keyserver hkp://keys.gnupg.net --recv-keys 409B6B1796C275462A1703113804BB82D39DC0E3

- name: Install RVM
shell: curl -sSL https://get.rvm.io | bash -s stable

- name: Install Ruby
shell: source /etc/profile.d/rvm.sh && rvm install ruby-2.2.6

- name: Set default Ruby
command: rvm alias create default ruby-2.2.6

- name: Install bunny client
shell: gem install bunny --version “>= 2.6.4”

After importing the required GPG keys, RVM and Ruby 2.2.6 are installed on the CentOS 6.8 VM. The bunny Ruby client for RabbitMQ is then installed. The Ansible playbook to set up Ruby is given below:

$ ansible-playbook -i inventory/kvm/inventory playbooks/configuration/rabbitmq.yml --tags “ruby”

We shall create a ‘temperature’ queue to send the values in Celsius. The consumer.rb code to receive the values from the queue is given below:

#!/usr/bin/env ruby

require “bunny”

conn = Bunny.new(:automatically_recover => false)
conn.start

chan = conn.create_channel
queue = chan.queue(“temperature”)

begin
puts “ ... waiting. CTRL+C to exit”
queue.subscribe(:block => true) do |info, properties, body|
puts “ Received #{body}”
end
rescue Interrupt => _
conn.close

exit(0)
end

The producer.rb code to send a sample of five values in degree Celsius is as follows:

#!/usr/bin/env ruby

require “bunny”

conn = Bunny.new(:automatically_recover => false)
conn.start

chan = conn.create_channel
queue = chan.queue(“temperature”)

values = [“33.5”, “35.2”, “36.7”, “37.0”, “36.4”]

values.each do |v|
chan.default_exchange.publish(v, :routing_key => queue.name)
end
puts “Sent five temperature values.”

conn.close

As soon as you start the consumer, you will get the following output:

$ ruby consumer.rb
... waiting. CTRL+C to exit

You can then run the producer.rb script that writes the values to the queue:

$ ruby producer.rb

Sent five temperature values.

The received values at the consumer side are printed out as shown below:

$ ruby consumer.rb
... waiting. CTRL+C to exit
Received 33.5
Received 35.2
Received 36.7
Received 37.0
Received 36.4

We can observe the available connections and the created queue in the management user interface as shown in Figure 3 and Figure 4, respectively.

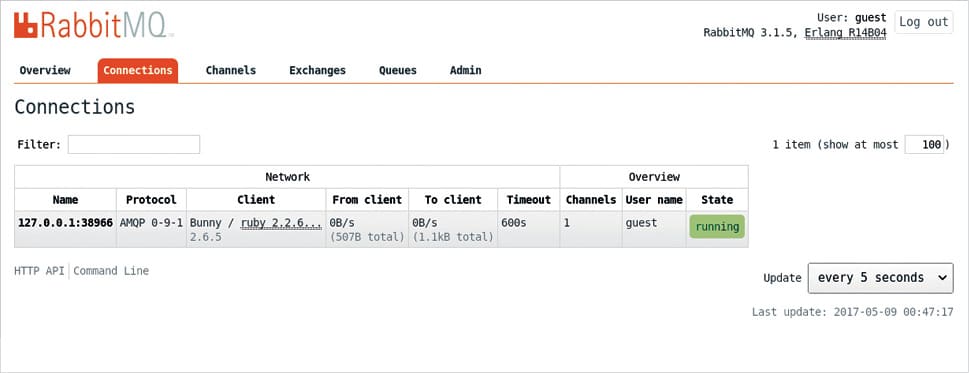

Figure 3: RabbitMQ connections

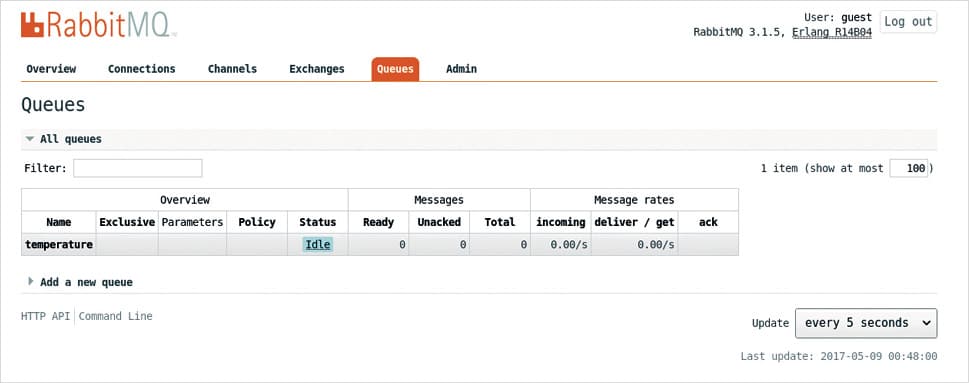

Figure 4: RabbitMQ queues

Uninstall

It is good to have an uninstall script to remove the RabbitMQ server for administrative purposes. The Ansible playbook for the same is available in the playbooks/admin folder and is shown below:

---
- name: Uninstall RabbitMQ server
hosts: rabbitmq
gather_facts: true
tags: [remove]

tasks:
- name: Stop the RabbitMQ server
service:
name: rabbitmq-server
state: stopped

- name: Uninstall rabbitmq
package:
name: “{{ item }}”
state: absent
with_items:
- rabbitmq-server

The script can be invoked as follows:

$ ansible-playbook -i inventory/kvm/inventory playbooks/admin/uninstall-rabbitmq.yml
